I found the Nordic House visuals by Héctor Javier Diez Valladares during my routine browse on Behance. My eye landed on it rather quickly and I could understand perfectly why it won first place in the First Latin-American CG Contest it was intended for. With snow being a rare treat for me I’m always drawn to such images, and this one had a great feel to it and so I wanted to know more and this article came to be. Enjoy!

Héctor Javier Diez Valladares Making of Nordic House

AuthorHéctor Javier Diez Valladares

Héctor Javier Diez Valladares is an architect graduated with a Bachelor in Architecture from Catholic University of Honduras. Studied abroad as an intern at Pontifical Catholic University of Chile. He specialized in 3D visualization and have been working as a freelancer since 2011 with experience in local and international projects.

I’ll start with special thanks to Ronen Bekerman for his interest in my work and the making of “Nordic House”. It is an honor for me to share my work and inspiration with all of you here.

Introduction

The Nordic House visuals were done for a competition and I want to express my deepest appreciation to the organizers of “Primer Concurso Latinoamericano CG” (First Latin-American CG Contest). Special thanks to Eddy Guzmán for having the initiative and making this contest a reality. It is a real honor for me to have been selected as the first place winner from such a prestigious jury – Julio Lazarte, Juan Carlos Ramos, Thi Lima, Iván Guillén, Javi Martínez and Ricardo Ortiz.

Here are the images I created for this house :

nordic house final 728x409 Making of Nordic House

74be9589fbad19cdf8b56b60127ec7b9 728x409 Making of Nordic House

578db67657200b9c642f9cb799e404ad 562x1000 Making of Nordic House

Inspiration

My inspiration for this project came from Nordic architecture. I love cold weather, clean and somber environments. This is an architecture I have worked with for some time and one that I constantly strive to improve on in my renders.

nordic house inspiration 728x407 Making of Nordic House

Modeling

These are the basic settings for my scene. I usually use LWF (Linear Workflow) in my work.

nordic house lwf 728x409 Making of Nordic House

The base model for the house is Eddy Guzman’s and was provided by him for this contest.

nordic house basemodel 728x407 Making of Nordic House
My contribution to the base model was in working the small details. I used basic poly modeling techniques – extrude, inset and chamfer. The exterior walls are made out of boxes with a small chamfer on the edges.

nordic house modeling 01 728x409 Making of Nordic House

Same techniques mentioned above were used in modeling the other details.

nordic house modeling 02 728x409 Making of Nordic House

To model the windows I used the 3dsmax sweep modifier and as a profile I used the shape you can see in the picture below.

nordic house modeling 03 728x409 Making of Nordic House

To model the exterior and interior floors I used the Floor Generator script. It is very easy to use and you can download it for free at CG-Source. Best article to read to get you started with it, is right here on this forum, written by Bertrand Benoit following his GH House Challenge entry – Using Floor Generator Script by Bertrand Benoit

nordic house modeling 05 728x409 Making of Nordic House

The snow and ground I modeled by using a plane to which I applied extrude and deformed it using 3DS Max Paint deformation tool.

nordic house modeling 04 728x409 Making of Nordic House

For the trees and bushes I used 3d models from R&D Group and Evermotion libraries.

nordic house vegetation 01 728x409 Making of Nordic House

nordic house vegetation 02 728x409 Making of Nordic House

Texturing

The material for the exterior walls is a VRayBlendMtl made from two wood materials, one dark and another lighter. These were later blended together using a mask.

nordic house materials 01 728x409 Making of Nordic House

nordic house materials 02 728x409 Making of Nordic House

The interior wooden floor has a VRayMtl with a Multi Texture in the Diffuse slot. Floor Generator script works well with it since it assigns different ID’s to each plank. Below is the interior wooden floor I did following same instructions.

nordic house materials 03 728x409 Making of Nordic House

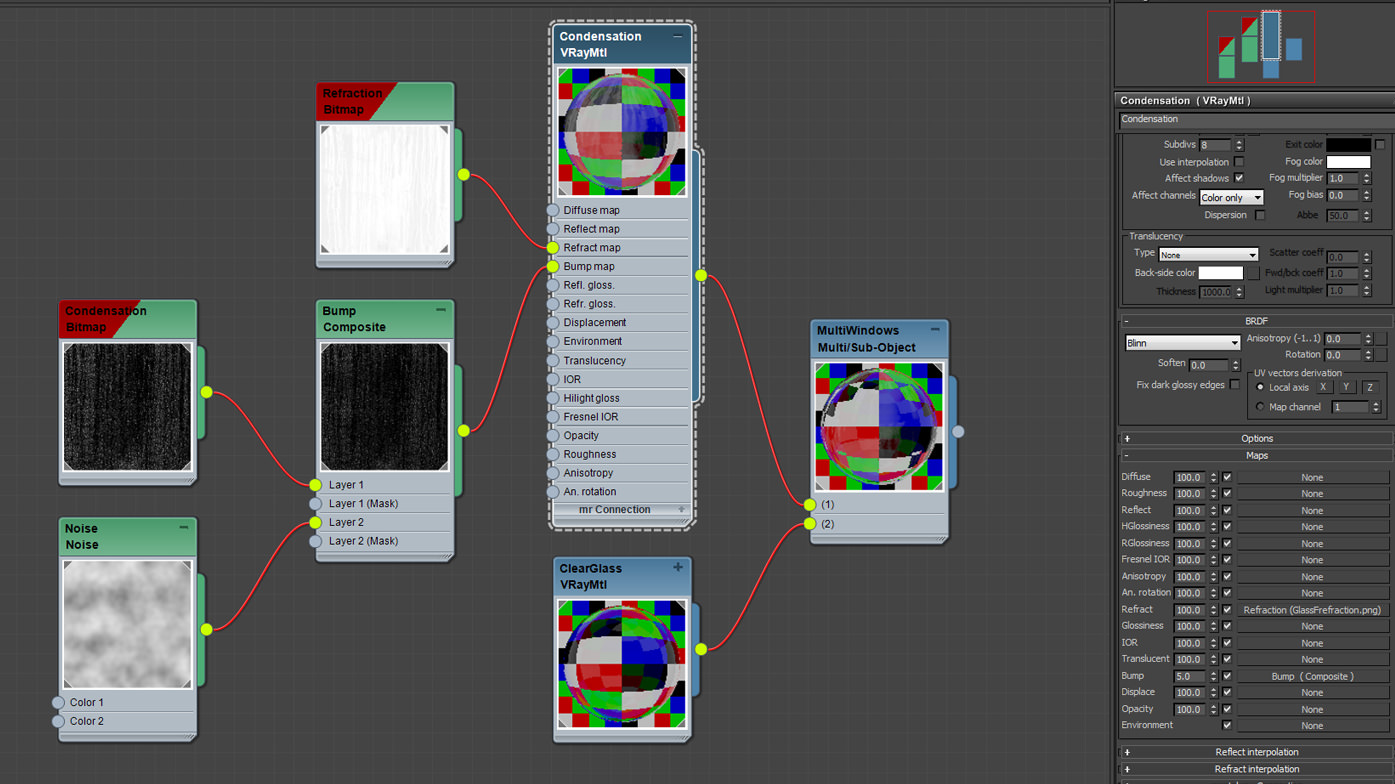

The condensation in the window glass was created with a drop texture in the Bump slot and using the same texture inverted in the Refraction slot. For the interior part of the glass I used the same materials without Bump.

nordic house materials 04 728x409 Making of Nordic House

The water material is composed by two VRayMtl and blended with a noise map.

nordic house materials 05 728x409 Making of Nordic House

The cushions texture is a VRayMtl with a Falloff in the Diffuse slot.

nordic house materials 06 728x409 Making of Nordic House

Using color correction can be of much help to get Reflection and Glossiness maps.

nordic house materials 07 728x409 Making of Nordic House

Here is a crop detail of the cushions…

nordic house materials 08 728x863 Making of Nordic House

Lighting and Camera

The exterior lightning I created by using a VRay Dome Light with http://www.ronenbekerman.com/go/peter-guthrie-hdri-1941/“>Peter Guthrie´s HDRi 1941 as texture and a bit desaturated.

nordic house lighting 01 728x409 Making of Nordic House

The same Dome Light is used in the interior lightning and I added V-Ray Plane Lights as portals on the windows.

nordic house lighting 02 728x409 Making of Nordic House

The VRayPhysicalCamera parameters for the exterior are the same that appear as default. I deactivated Vignetting and for White Balance I put in neutral and also corrected verticals.

nordic house cameras 01 728x409 Making of Nordic House

Interior VRayPhysicalCamera parameters :

nordic house cameras 02 728x409 Making of Nordic House

Post Production

Starting with a RAW render…

nordic house raw 728x409 Making of Nordic House

Overlay 40% opacity

nordic house post 01 728x409 Making of Nordic House

Curves & Saturation 1

nordic house post 02 728x409 Making of Nordic House

Curves & Saturation 2

nordic house post 03 728x409 Making of Nordic House

Curves & Saturation 3, Chromatic aberration and Vignetting

nordic house final 728x409 Making of Nordic House

I hope you enjoyed it and you might find it helpful in future projects.
